Constructing knowledge graphs
在这个指南中，我们将讨论基于非结构化文本构建知识图的基本方法。构建的图可以在RAG应用程序中用作知识库。
⚠️ Security note ⚠️
构建知识图谱需要执行对数据库的写访问。这样做会存在固有风险。在导入数据之前，请确保验证和验证数据。有关一般安全最佳实践， 请点击这里。
Architecture
在高层次上，从文本构建知识的步骤是：
- 从文本中提取结构化信息： 模型用于从文本中提取结构化图形信息。
- 将提取的结构化图信息存储到图数据库中，使下游RAG应用程序能够访问。
Setup
首先，获取所需软件包并设置环境变量。在这个示例中，我们将使用Neo4j图数据库。
%pip install --upgrade --quiet langchain langchain-community langchain-openai langchain-experimental neo4j
Note: you may need to restart the kernel to use updated packages.
我们在本指南中默认使用OpenAI模型。
import getpass
import os
os.environ["OPENAI_API_KEY"] = getpass.getpass()
# Uncomment the below to use LangSmith. Not required.
# os.environ["LANGCHAIN_API_KEY"] = getpass.getpass()
# os.environ["LANGCHAIN_TRACING_V2"] = "true"
········
接下来，我们需要定义 Neo4j 凭据和连接。按照以下安装步骤来设置一个 Neo4j 数据库。
import os
from langchain_community.graphs import Neo4jGraph
os.environ["NEO4J_URI"] = "bolt://localhost:7687"
os.environ["NEO4J_USERNAME"] = "neo4j"
os.environ["NEO4J_PASSWORD"] = "password"
graph = Neo4jGraph()
LLM Graph Transformer
从文本中提取图形数据可以将非结构化信息转化为结构化格式，促进对复杂关系和模式的更深入洞察和更高效的导航。LLMGraphTransformer 将文本文档转换为结构化图形文档，通过利用 LLM 对实体及其关系进行解析和分类。选择LLM模型会显著影响输出结果，确定提取的图形数据的准确性和微妙之处。
import os
from langchain_experimental.graph_transformers import LLMGraphTransformer
from langchain_openai import ChatOpenAI
llm = ChatOpenAI(temperature=0, model_name="gpt-4-0125-preview")
llm_transformer = LLMGraphTransformer(llm=llm)
现在我们可以传入示例文本并检查结果。
from langchain_core.documents import Document
text = """
Marie Curie, was a Polish and naturalised-French physicist and chemist who conducted pioneering research on radioactivity.
She was the first woman to win a Nobel Prize, the first person to win a Nobel Prize twice, and the only person to win a Nobel Prize in two scientific fields.
Her husband, Pierre Curie, was a co-winner of her first Nobel Prize, making them the first-ever married couple to win the Nobel Prize and launching the Curie family legacy of five Nobel Prizes.
She was, in 1906, the first woman to become a professor at the University of Paris.
"""
documents = [Document(page_content=text)]
graph_documents = llm_transformer.convert_to_graph_documents(documents)
print(f"Nodes:{graph_documents[0].nodes}")
print(f"Relationships:{graph_documents[0].relationships}")
Nodes:[Node(id='Marie Curie', type='Person'), Node(id='Polish', type='Nationality'), Node(id='French', type='Nationality'), Node(id='Physicist', type='Occupation'), Node(id='Chemist', type='Occupation'), Node(id='Radioactivity', type='Field'), Node(id='Nobel Prize', type='Award'), Node(id='Pierre Curie', type='Person'), Node(id='University Of Paris', type='Organization')]
Relationships:[Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='Polish', type='Nationality'), type='NATIONALITY'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='French', type='Nationality'), type='NATIONALITY'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='Physicist', type='Occupation'), type='OCCUPATION'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='Chemist', type='Occupation'), type='OCCUPATION'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='Radioactivity', type='Field'), type='RESEARCH_FIELD'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='Nobel Prize', type='Award'), type='AWARD_WINNER'), Relationship(source=Node(id='Pierre Curie', type='Person'), target=Node(id='Nobel Prize', type='Award'), type='AWARD_WINNER'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='University Of Paris', type='Organization'), type='PROFESSOR')]

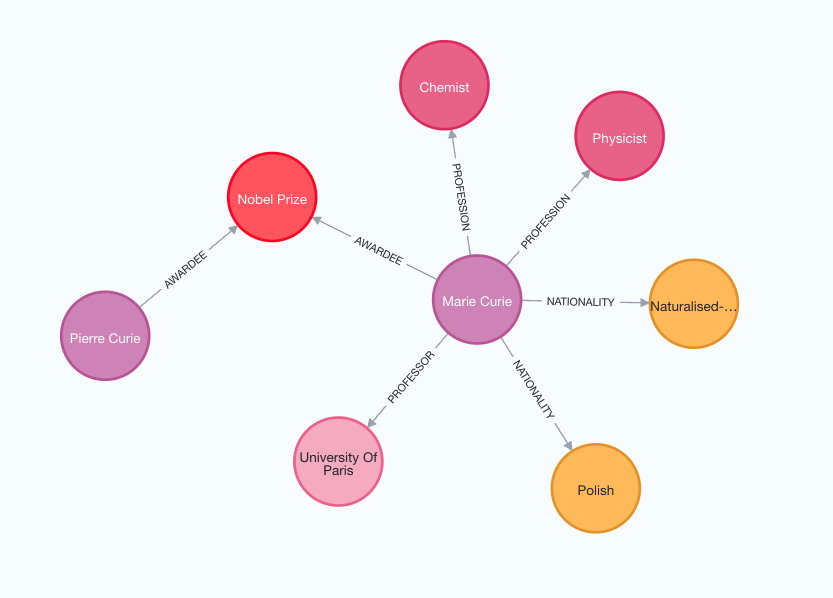

查看以下图片，更好地了解生成知识图的结构。
注意，由于我们使用LLM，图构建过程是非确定性的。因此，每次执行可能会得到略有不同的结果。
另外，您可以根据自己的需求灵活定义要提取的特定节点和关系类型。
llm_transformer_filtered = LLMGraphTransformer(
llm=llm,
allowed_nodes=["Person", "Country", "Organization"],
allowed_relationships=["NATIONALITY", "LOCATED_IN", "WORKED_AT", "SPOUSE"],
)
graph_documents_filtered = llm_transformer_filtered.convert_to_graph_documents(
documents
)
print(f"Nodes:{graph_documents_filtered[0].nodes}")
print(f"Relationships:{graph_documents_filtered[0].relationships}")
Nodes:[Node(id='Marie Curie', type='Person'), Node(id='Polish', type='Country'), Node(id='French', type='Country'), Node(id='Pierre Curie', type='Person'), Node(id='University Of Paris', type='Organization')]
Relationships:[Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='Polish', type='Country'), type='NATIONALITY'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='French', type='Country'), type='NATIONALITY'), Relationship(source=Node(id='Pierre Curie', type='Person'), target=Node(id='Marie Curie', type='Person'), type='SPOUSE'), Relationship(source=Node(id='Marie Curie', type='Person'), target=Node(id='University Of Paris', type='Organization'), type='WORKED_AT')]

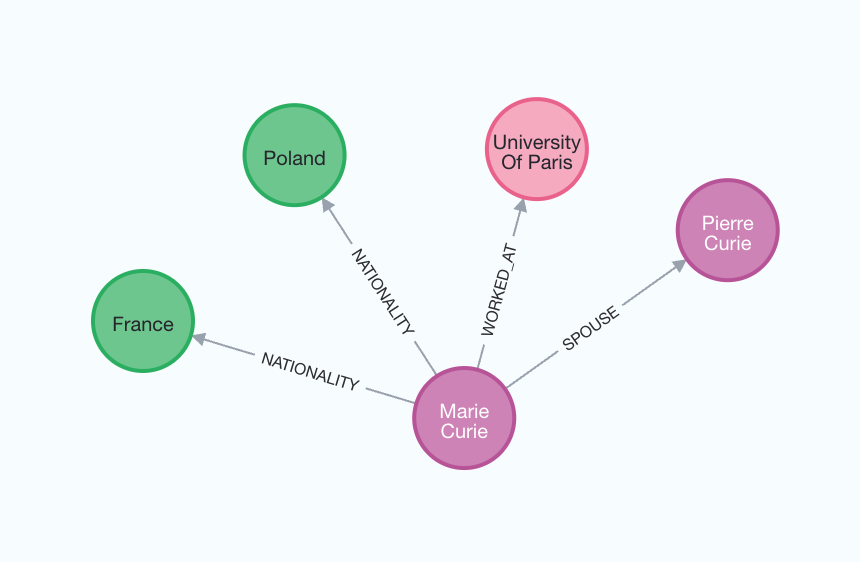

为了更好地理解生成的图表，我们可以再次将其可视化。
Storing to graph database
生成的图形文件可以使用add_graph_documents方法存储到图形数据库中。
graph.add_graph_documents(graph_documents_filtered)
